ACM hardware

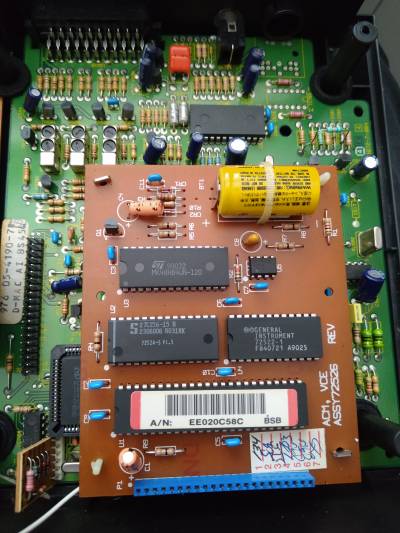

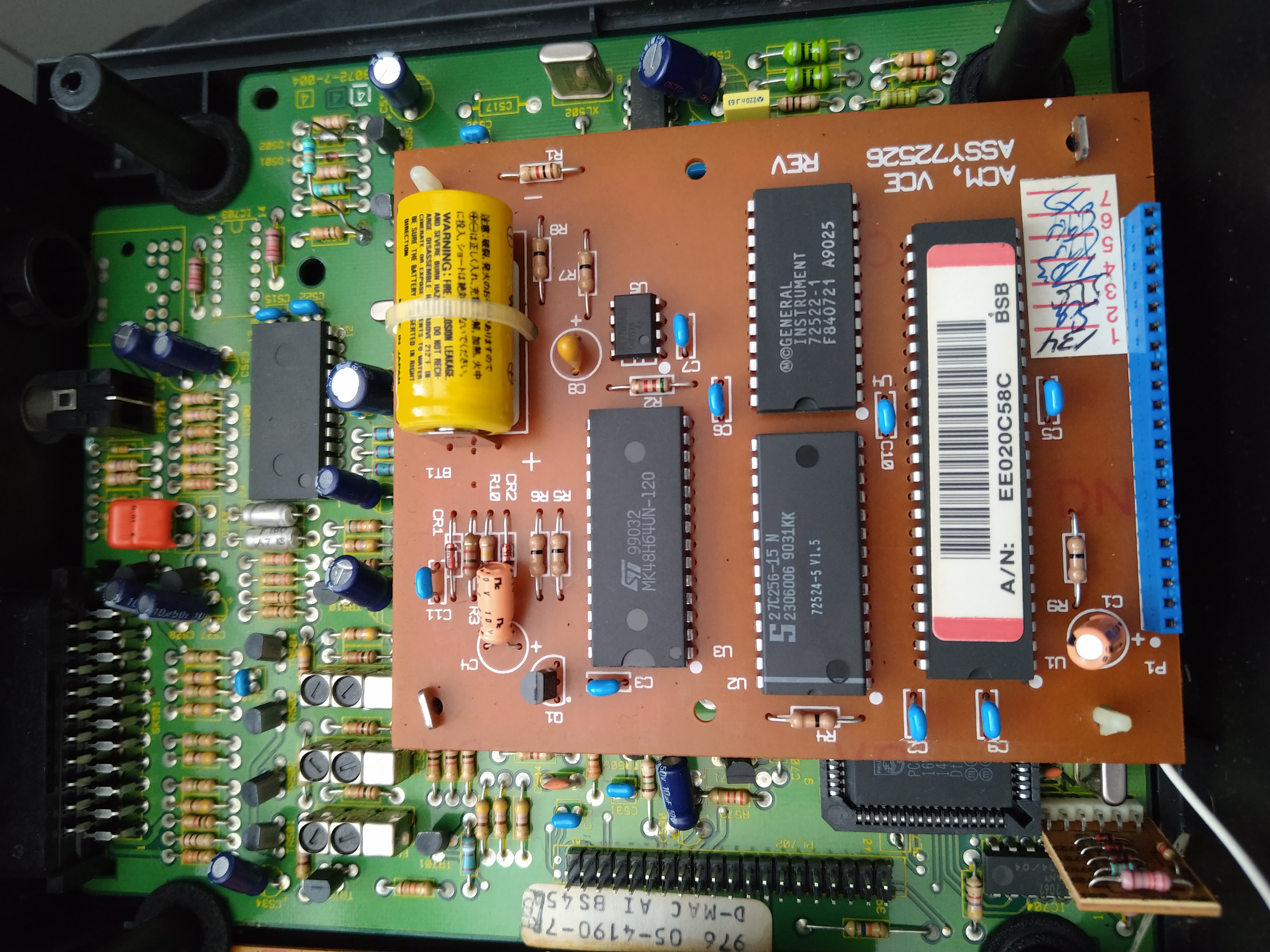

The ACM is a relatively simple board with only four major components:

  • NCR-manufactured custom ASIC
    • General Instrument part number 72523-2 F840590 A9023
    • Western Design Centre embedded CMOS 6502 CPU core with extended instructions
    • 8-bit parallel (6502-style) interface to communicate with the set-top box
    • Serial ACM-bus interface to communicate with e.g. an external modem for impulse pay-per-view features
    • :?: Possibly some kind of encryption processor
      • The key only changes every 256 frames (~10 seconds), so this doesn't have to be particularly fast.
      • According to (ref: Bennett, Moroney and Cutts, “The Architecture and Security Design Goals of the Eurocypher system”), the algorithm used is proprietary to Eurocypher. This is unlike VideoCipher II, which uses DES.
      • (ref: Chippindale and Franks, “Dished!”) suggests that the algorithm change may have been done at the behest of the NSA and GCHQ.
  • Signetics 27C256 OTP EPROM (main program code)
    • General Instrument part number 72524-2 (V1.20 V1.50 firmware) or 72524-5 (V1.50 firmware)
  • 8-kbyte low-power RAM, with battery back-up
    • Either a Mostek/ST MK48H64LN-120 or MK48H64UN-120 (most common) or Fujitsu 8464A-20L.
  • General Instrument 72522-1 OSD controller
    • 16 lines of 31 characters
    • Display attributes seem to be per-line. According to (ref: Bennett, Moroney and Cutts, “The Architecture and Security Design Goals of the Eurocypher system”):
      • Text is always white; font supports upper and lower case characters.
      • Double height, underline and blinking.
      • Background transparent (TV picture show-thru), blue or black, with shadowing or blocking of characters.
    • The RGB output and OSD Enable (fast blanking) is fed to the VCU2133 video processor in the receiver.
Start address End address Assigned to
0x0000 0x1FFF 8Kbytes battery-backed RAM (U3)
0x2000 0x3FFF :?:
The reset routine accesses addresses 0x2100-0x2102 and 0x2401.
0x4000 0x7FFF OSD chip (U4)
note only A0 and A1 are connected to U4
0x8000 0xFFFF 32Kbytes EPROM (U2)
Pin Function Pin name
(Ferguson)
Notes
1 GND
2 Ext ACM Data PPV Connects to external ACM peripherals, e.g. Videocipher VideoPAL
3 +5V +5VA
4 Interrupt SIRQ “Interrupt generated by the ACM”
Philips: 8051 P3.3 (INT1)
Tatung: 80C562 pin 26 (INT0)
Ferguson: CCU3000 pin 60
5 Register select SIRS “Used to switch between Control or Data for the ACM”
Philips: A11
Tatung: 80C562 pin 28 (P3.4/T0)
Ferguson: CCU3000 pin 46
6 ACM select SIACMSEL “Select/strobe line used to select the ACM, which is used as if it were memory”
Philips: 74F139 pin 9 (3b)
Tatung: 80C562 pin 30 and 31 (/WR and /RD)
Ferguson: CCU3000 pin 45
7 Read/write SIR/W “Read/Write control for the ACM”
Philips: A12
Tatung: 80C562 pin 29 (P3.5/T1)
Ferguson: CCU3000 pin 47
8 AD0 DB0 Data bus
Philips: CPU data bus
Tatung: 80C562 pin 50-57 (P0.7-P0.0)
Ferguson: CCU3000 pin 48 to 55 (Port 7)
9 AD1 DB1
10 AD2 DB2
11 AD3 DB3
12 AD4 DB4
13 AD5 DB5
14 AD6 DB6
15 AD7 DB7
16 CLK CLK (SHAPED) ACM clock, 20.25MHz
Philips: Burst Clock Output from DMA2280 pin 60. =MCLK or MCLK/2
Tatung: clock buffer output; 4 x colourburst freq = 20.25MHz
Ferguson: 20.25MHz clock, shaped with TTL gates
17 CSYNC IN SYNC Philips: from net “C9” (CSYNC) – which doesn't seem to go anywhere
Tatung: “A” – DMA2280 pin 53 (CSYNC OUT)
Ferguson: SYNC
18 Philips: 10nF to GND
Tatung: R580 (1k) to “B” (PL702/PL752 pin 6 - Composite Sync out to MC1377)
Ferguson: open
19 OSD Enable OSDEN To VCU2133 FB/R/G/B In pins
20 OSD Red ROSD
21 OSD Green GOSD
22 OSD Blue BOSD

The ROM may be dumped by desoldering the chip and placing it into an EPROM eraser. Be careful not to short any of the pins or solder joints, as this may clear or corrupt the RAM contents.

I'm investigating ways to dump the RAM. There are several options.

This option involves a piggy-back board which plugs into the EPROM socket. This would carry the EPROM, a Dallas DS1225 battery-backed RAM chip, and some logic ICs.

  • The DS1225 is preprogrammed to known values, then fitted to the socket. The EPROM is installed, and the piggy-back board is fitted into the ACM.
  • A wire would be soldered to RAM pin 27 to pick up the RAM write signal (/RAMWR).
  • Logic would:
    • Convert /CS1 and CS2 (from the MK48H64 RAM) into a single /CS chip select signal for the DS1225.
    • Merge /OE and /WR into a single /WE write signal for the DS1225.
  • This would mean any access to the RAM would result in a copy to the DS1225.

The disadvantage with this option is that only accessed RAM locations would be backed up. Essentially, this assumes that the ACM firmware does some kind of checksum or access of the RAM data when it boots.

This method involves building a piggy-back board with an FTDI FT245 USB-FIFO chip, an EPROM, and some glue logic.

  • Accesses to the lower part of the EPROM cause a byte to be latched into the FT245.
  • The EPROM code sends a short sync message, then reads the contents of RAM and sends it to the host via the FT245.
  • Optional: add a means of reading from the FT245, allowing the RAM to be cloned.

This is a more involved option, but would allow the entire RAM to be dumped and restored as needed.

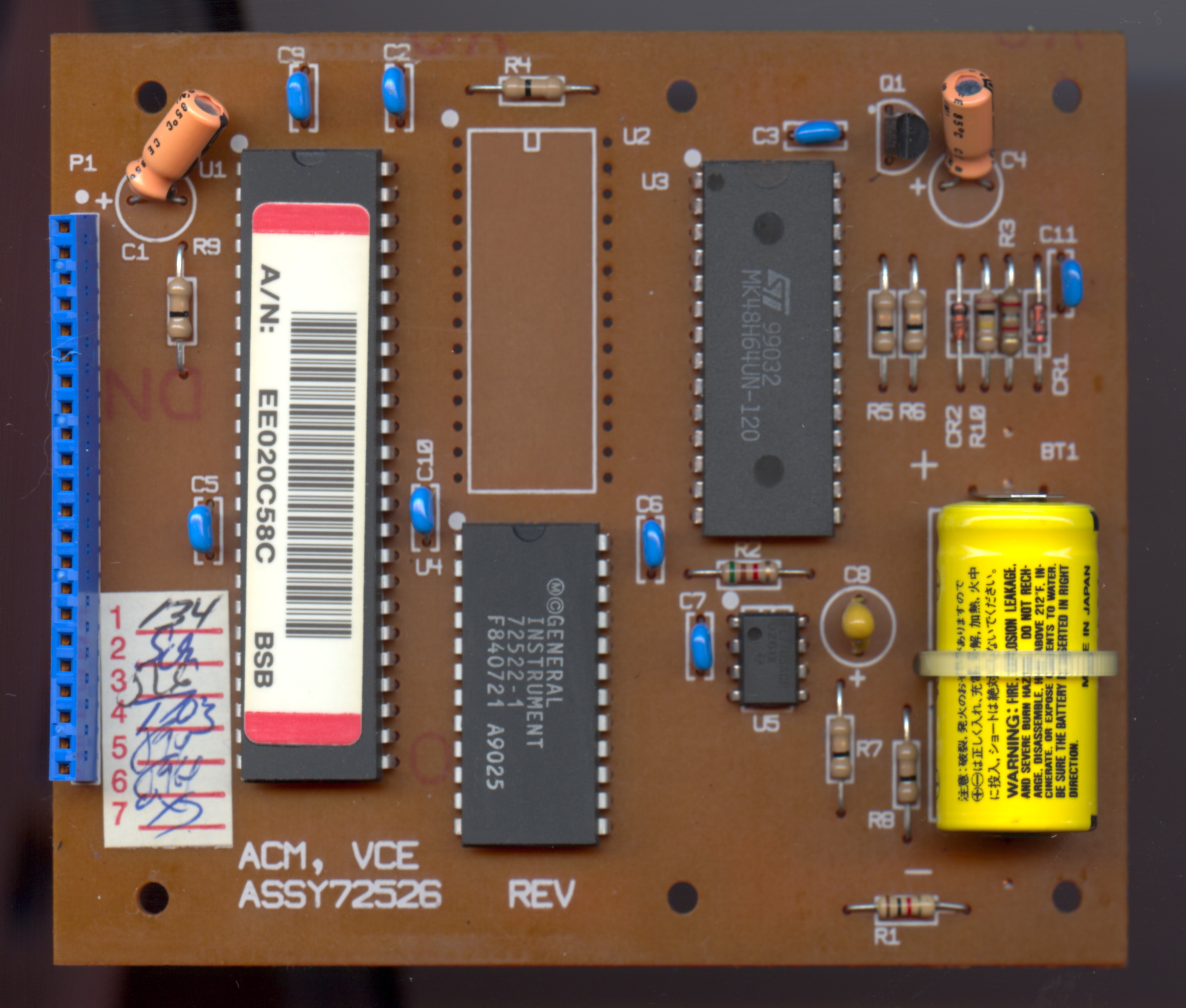

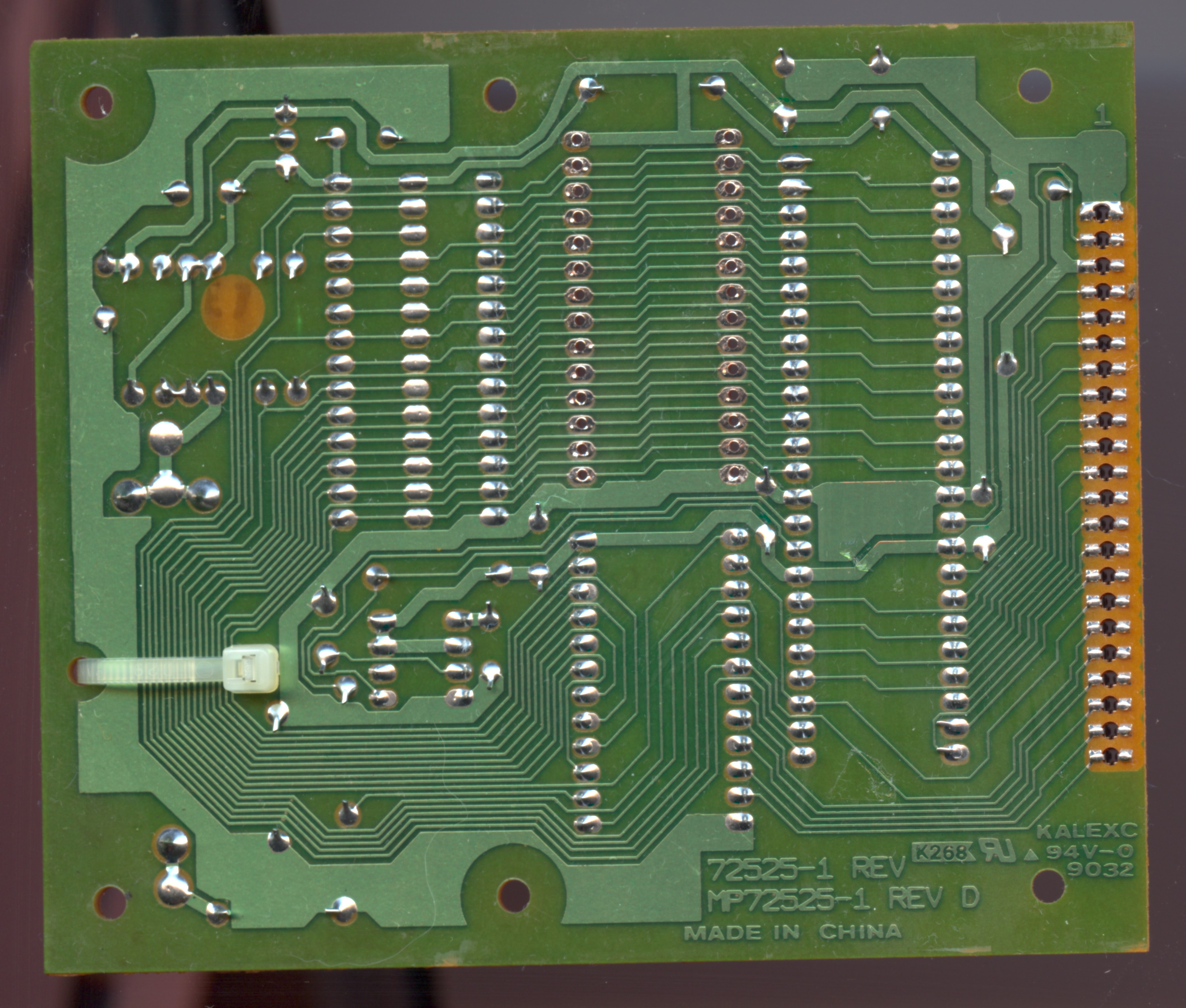

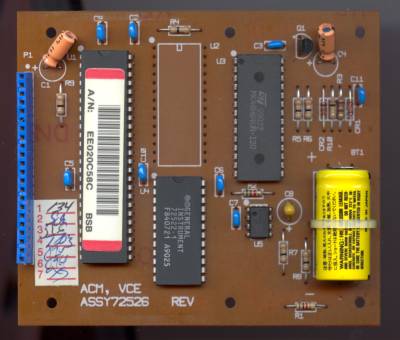

These two scans show the PCB in more detail. The PCB is single-sided, and these can be used to derive a schematic diagram.
