[Return to top] 68008 Dartboard control pcb. By Lee Davison.
Back


Dart control PCB to COM port lead.

Making A COM port lead.

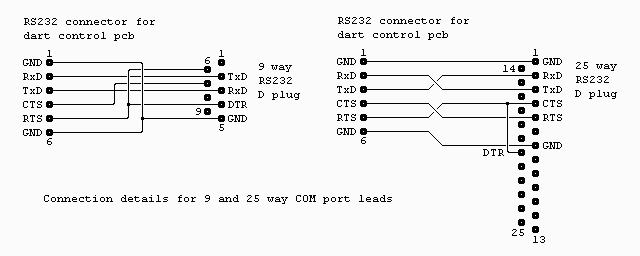

Above is a diagram for connecting the Dart control PCB to either a 9 or 25 way PC COM port. Both leads are wired for hardware handshake (prefered) but if software handshake (XON/XOFF) or no handshake is to be used then only TxD, RxD and GND need be connected.

Note Pin 1 on the RS232 connector is the pin furthest away from the power connector.

The finished leads.

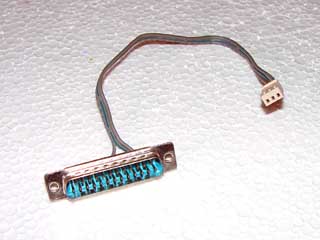

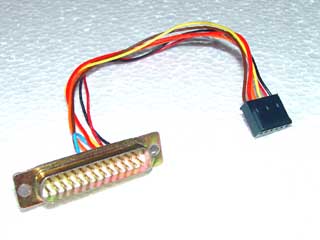

dart board COM port lead. Three wire, no handshake. dart board COM port lead. Six wire, hardware handshake.
